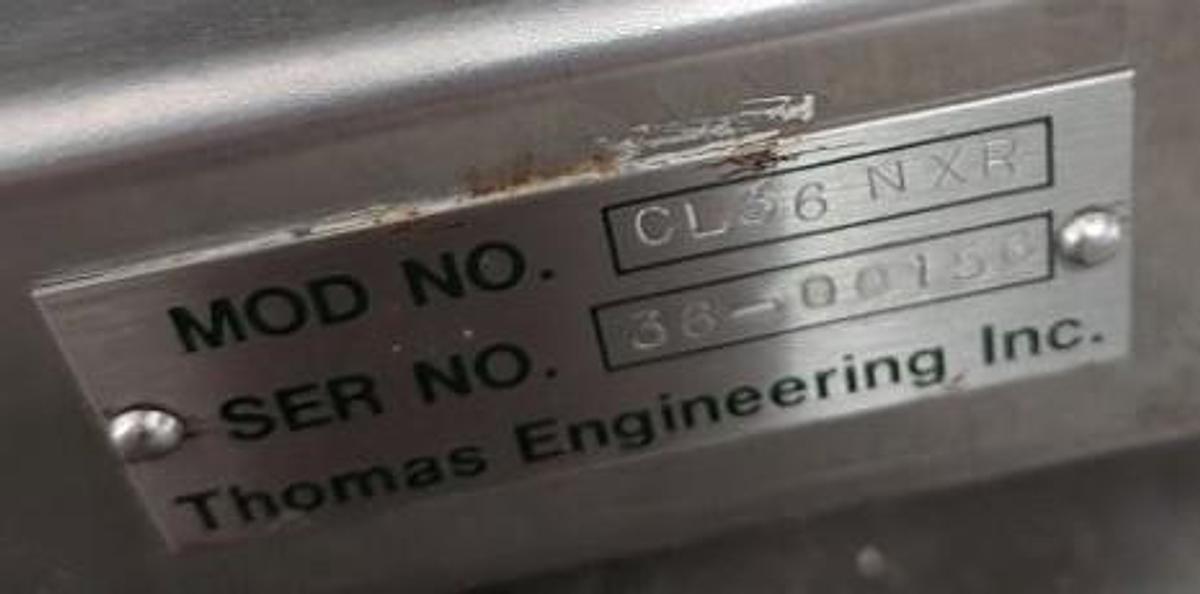

Used Thomas 36” Compu-Lab Tablet Coating Pan, Model CL36-NXR

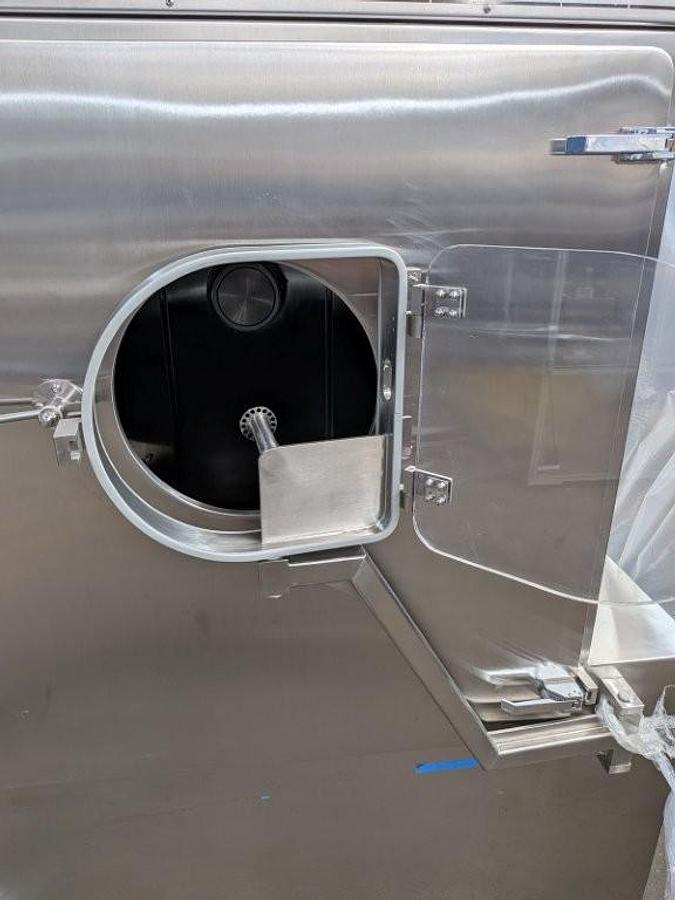

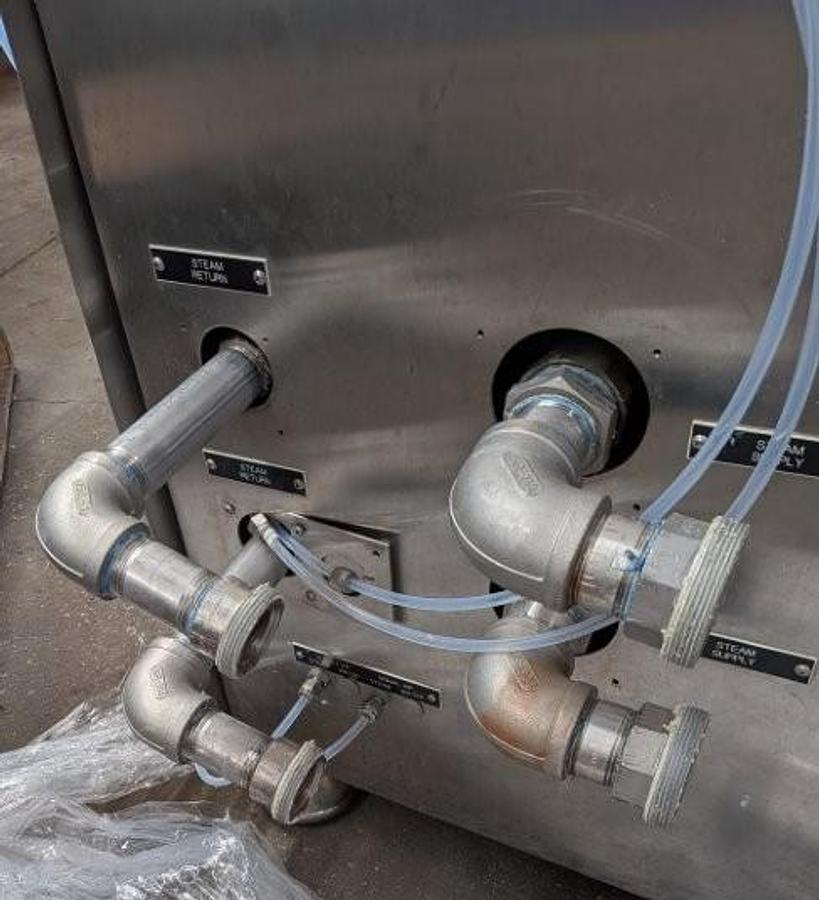

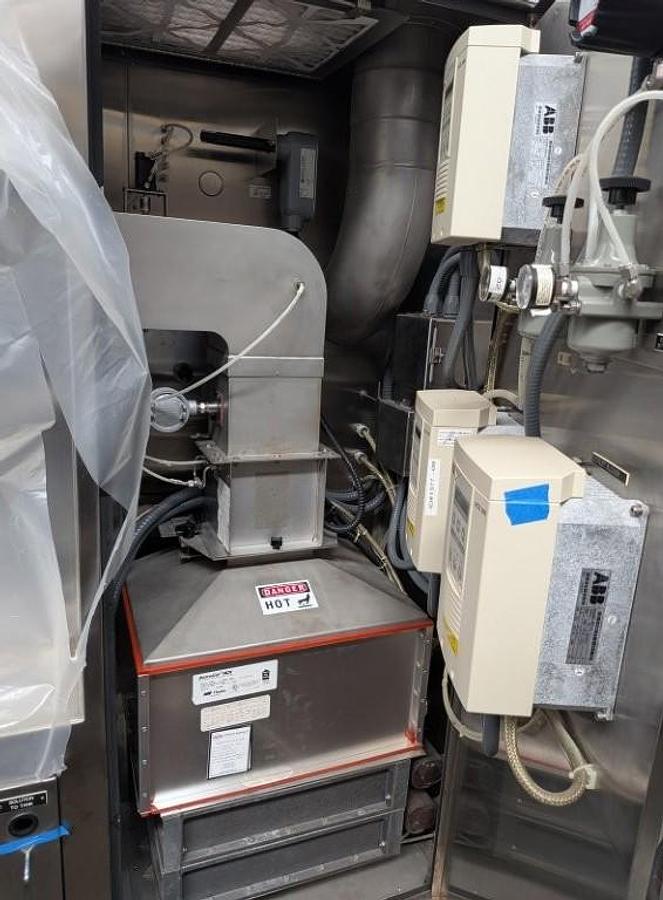

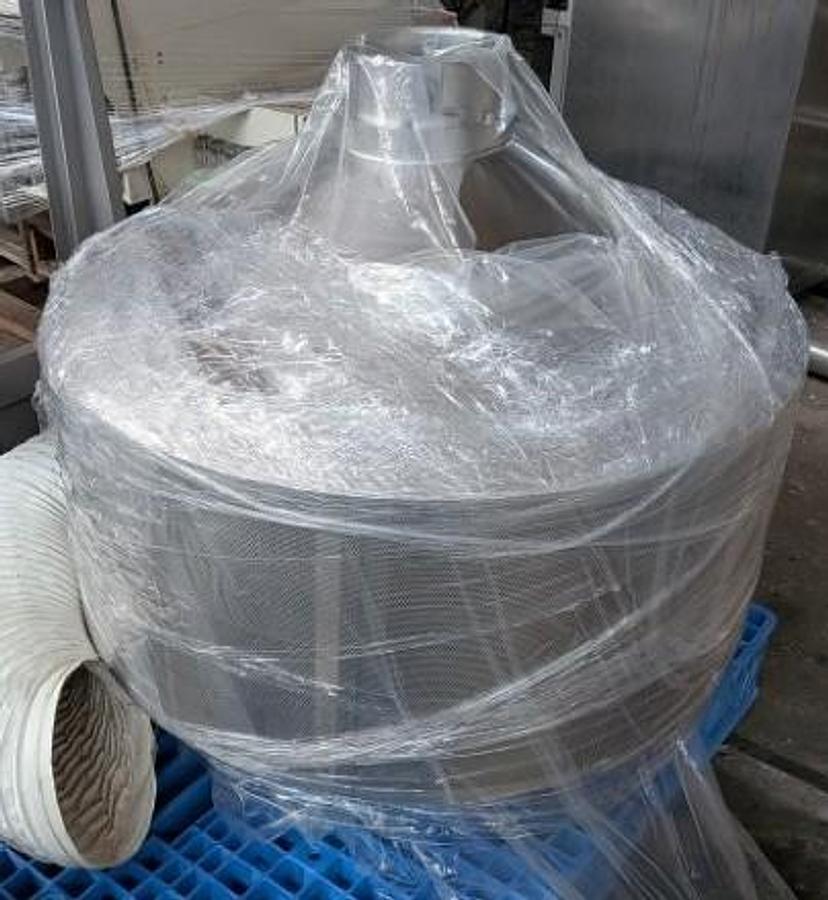

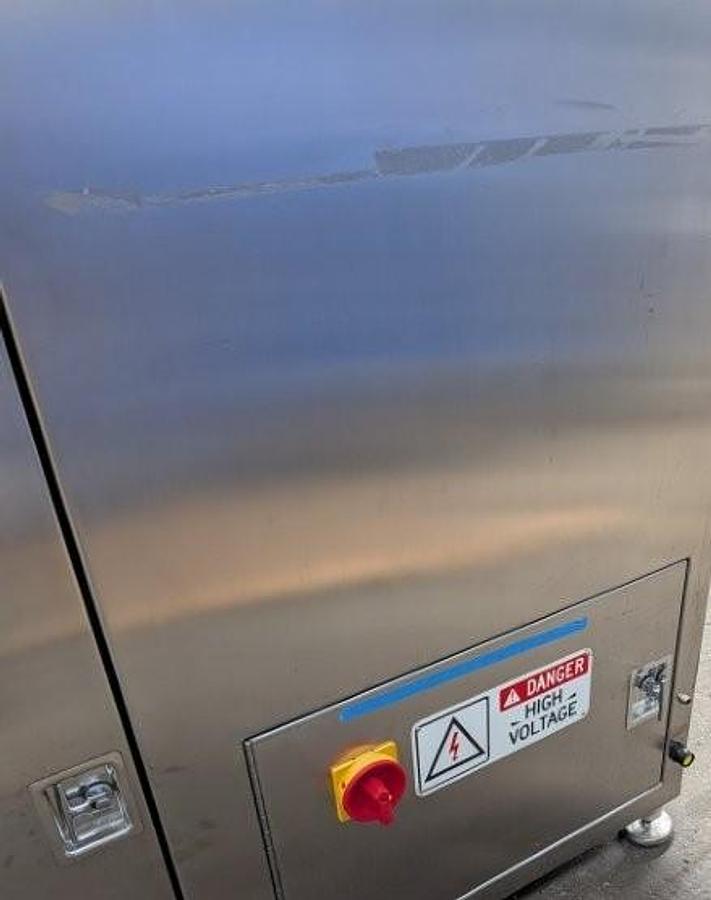

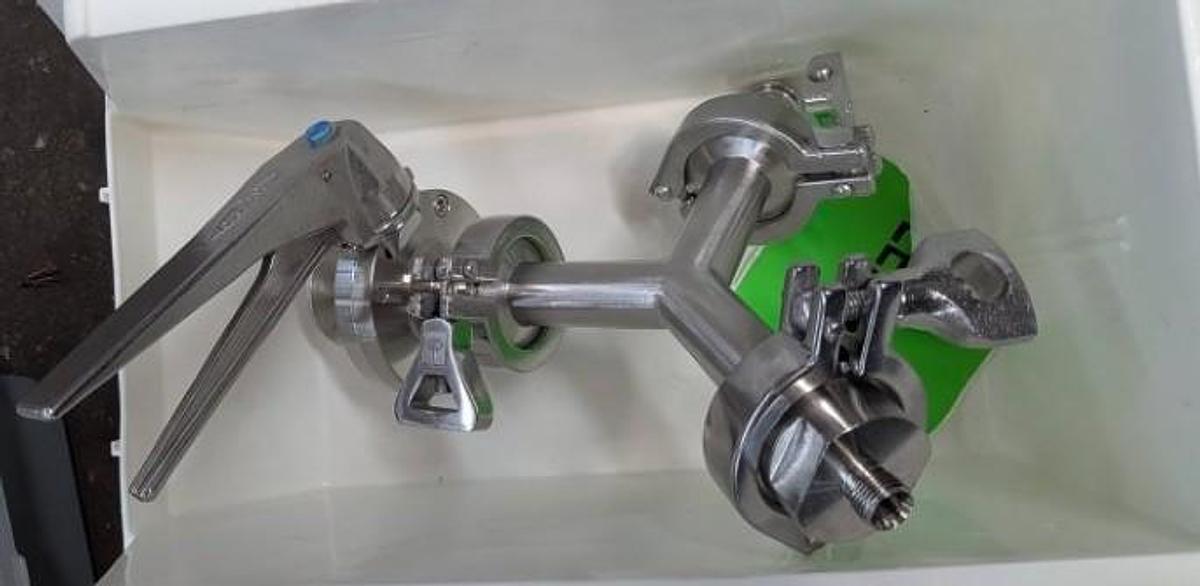

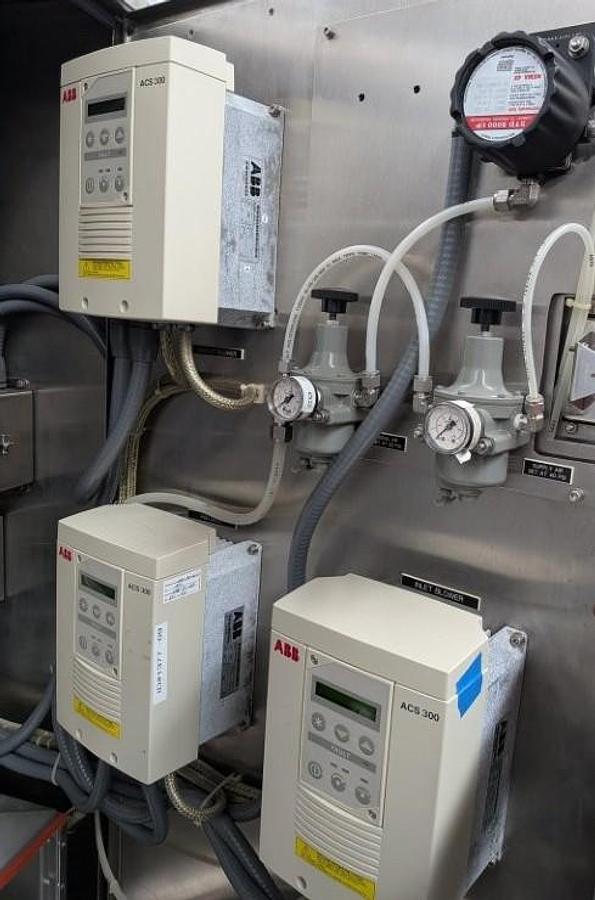

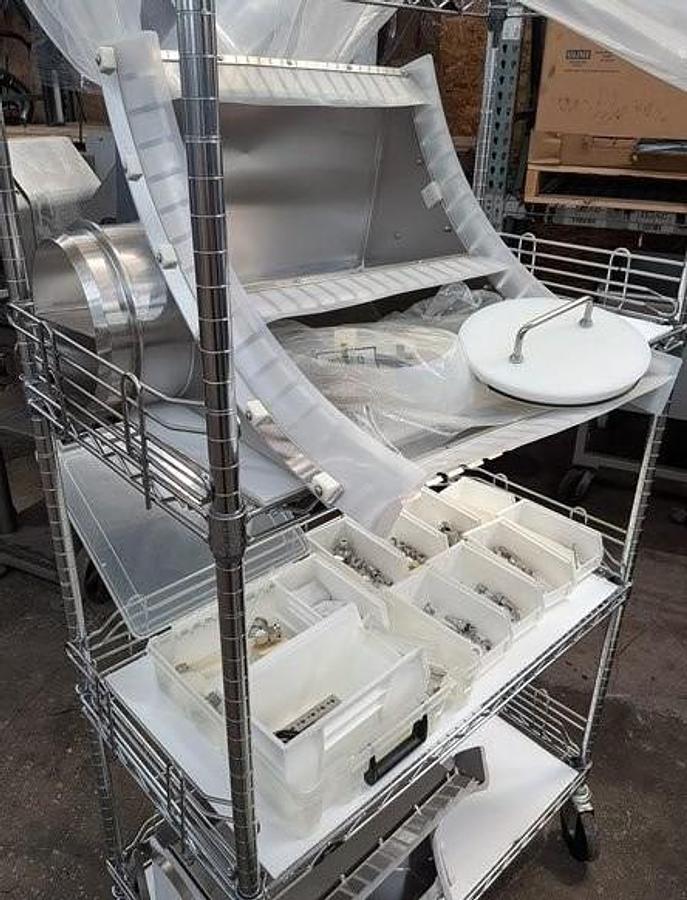

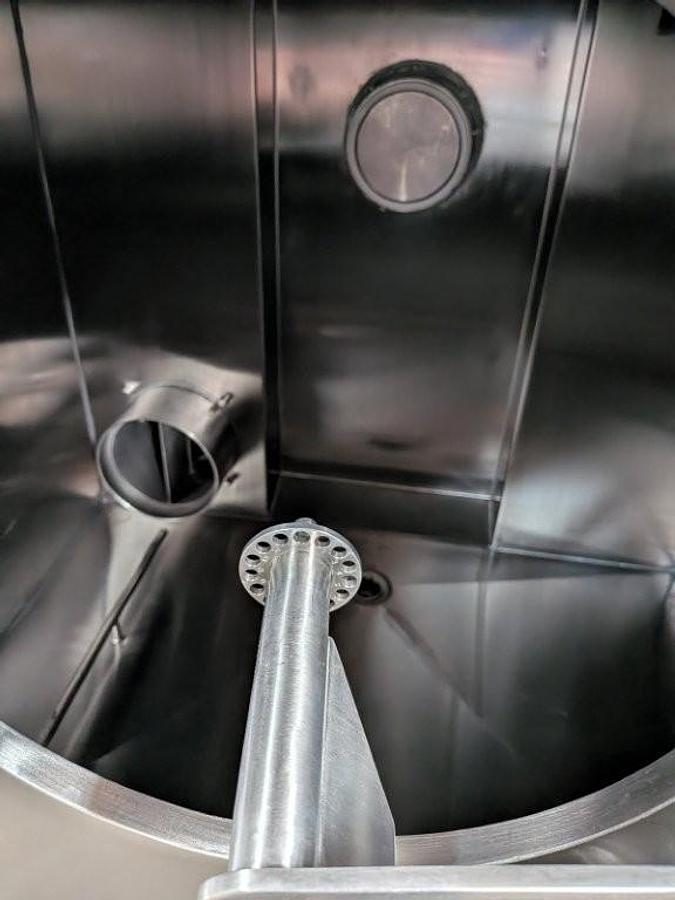

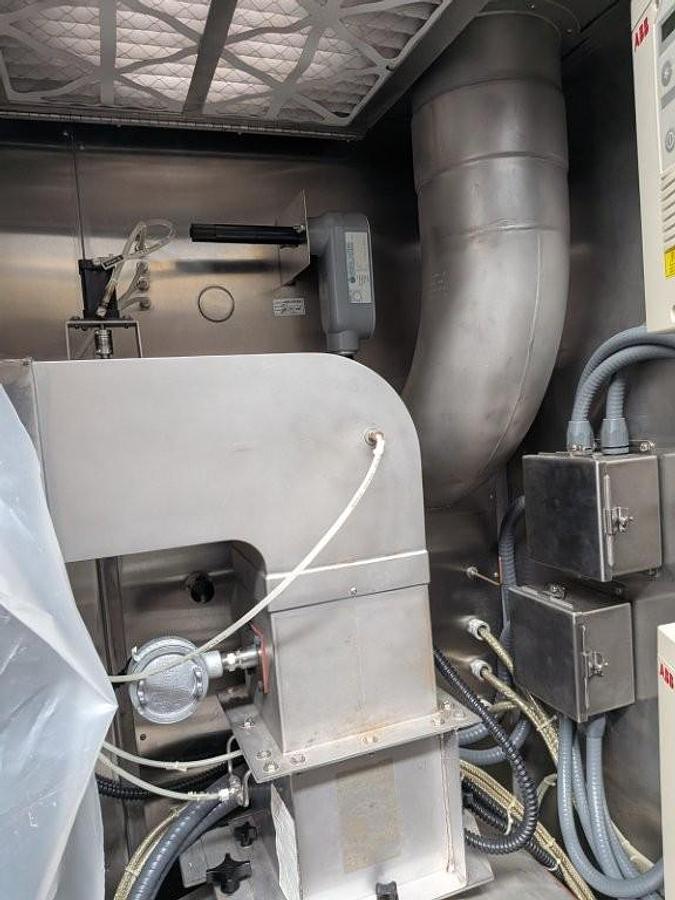

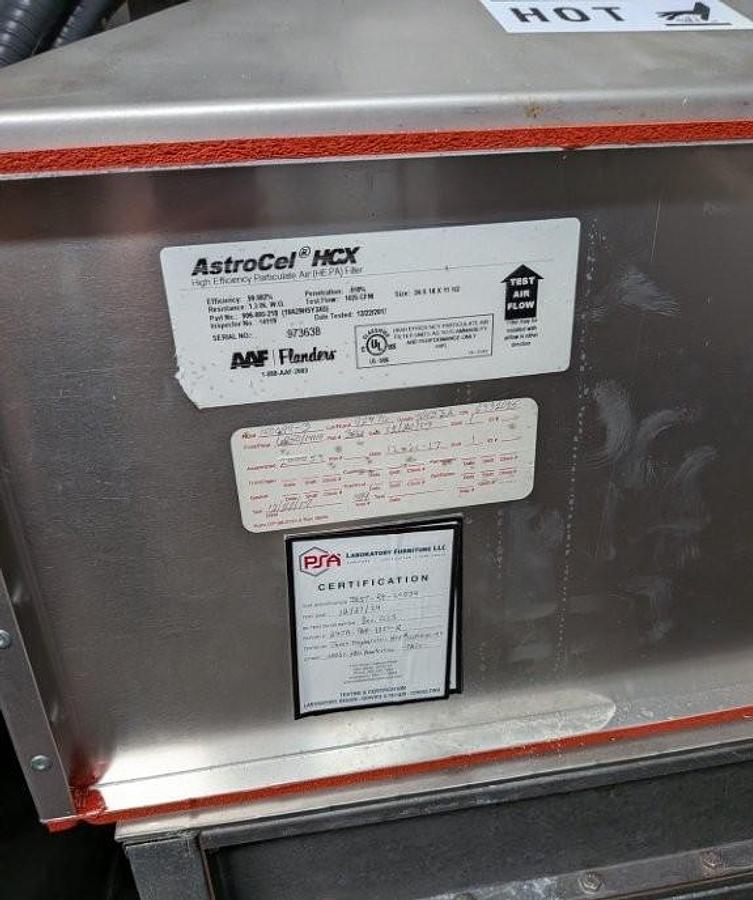

1 Used Thomas 36” Compu-Lab Tablet Coating Pan, Model CL36-NXR. This is a self-contained tablet coating system with the pan, spray system, inlet & exhaust air handlers and controls mounted inside the enclosure. Includes HEPA filtration. Comes with gear pump and flow meter.  Also includes a 24” interchangeable pan. Rated for aqueous coating and is set up for steam heating.

Specifications for 36” pan (as per OEM).

·         Pan capacity – 30-110 litres

·         Pan weight – 98 pounds

·         Pan rpm – 3 to 30

·         Spray rate – 25 to 250 grams per minute

·         Temperature control - ±1°C

·         CFM – 250 to 1,000

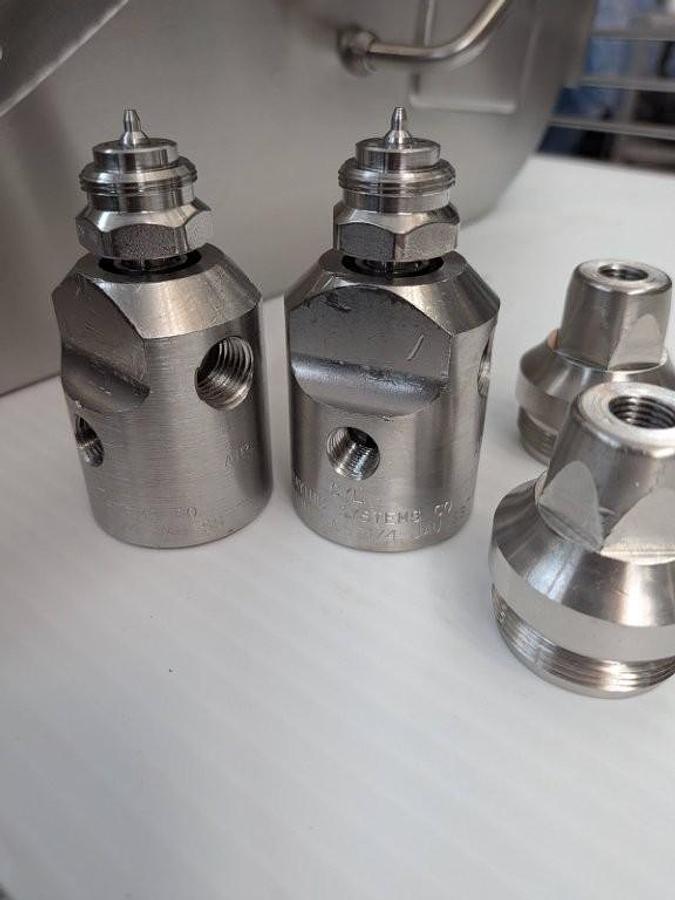

·         Spray guns – 3

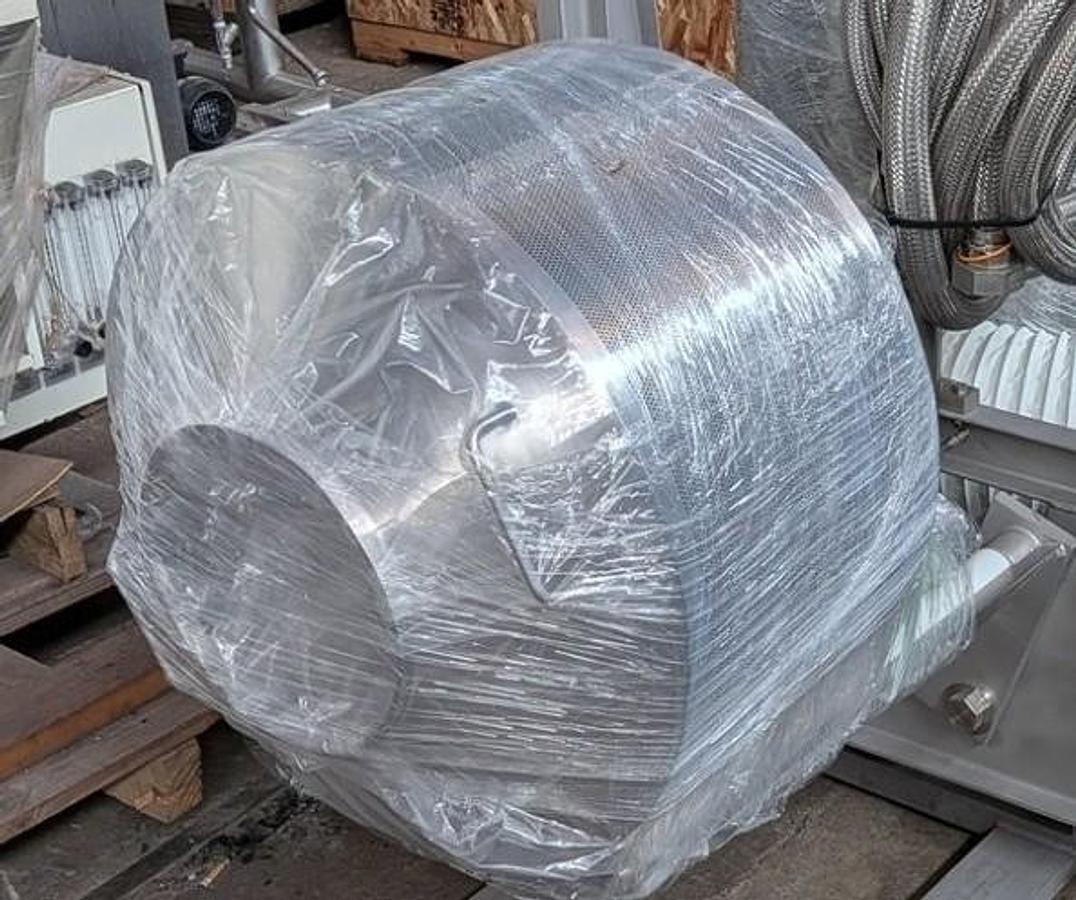

Specifications for 24” pan (as per OEM).

•            Pan capacity – 8 -30 litres

•            Pan weight – 48 pounds

•            Pan rpm – 3 to 30

•            Spray rate – 25 to 250 grams per minute

•            Temperature control - ±1°C

•            CFM – 400

•            Spray guns – 2
