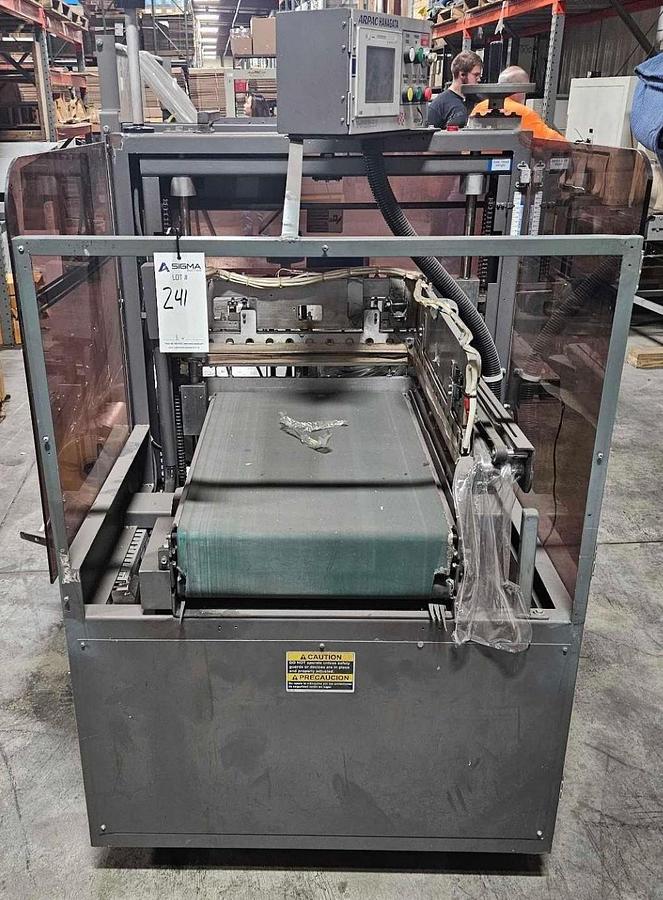

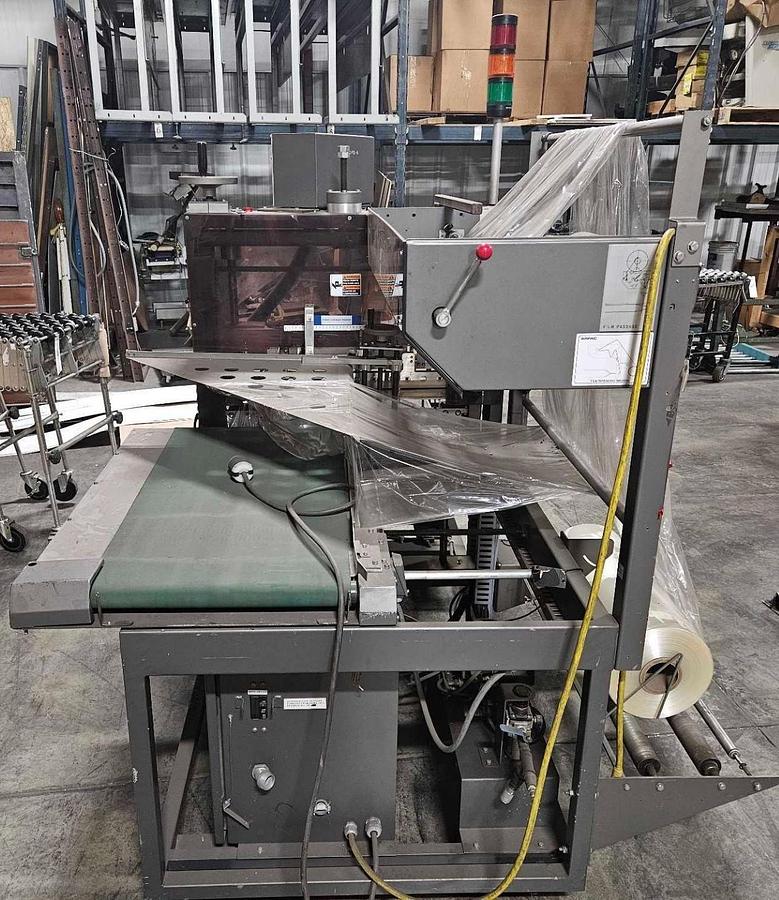

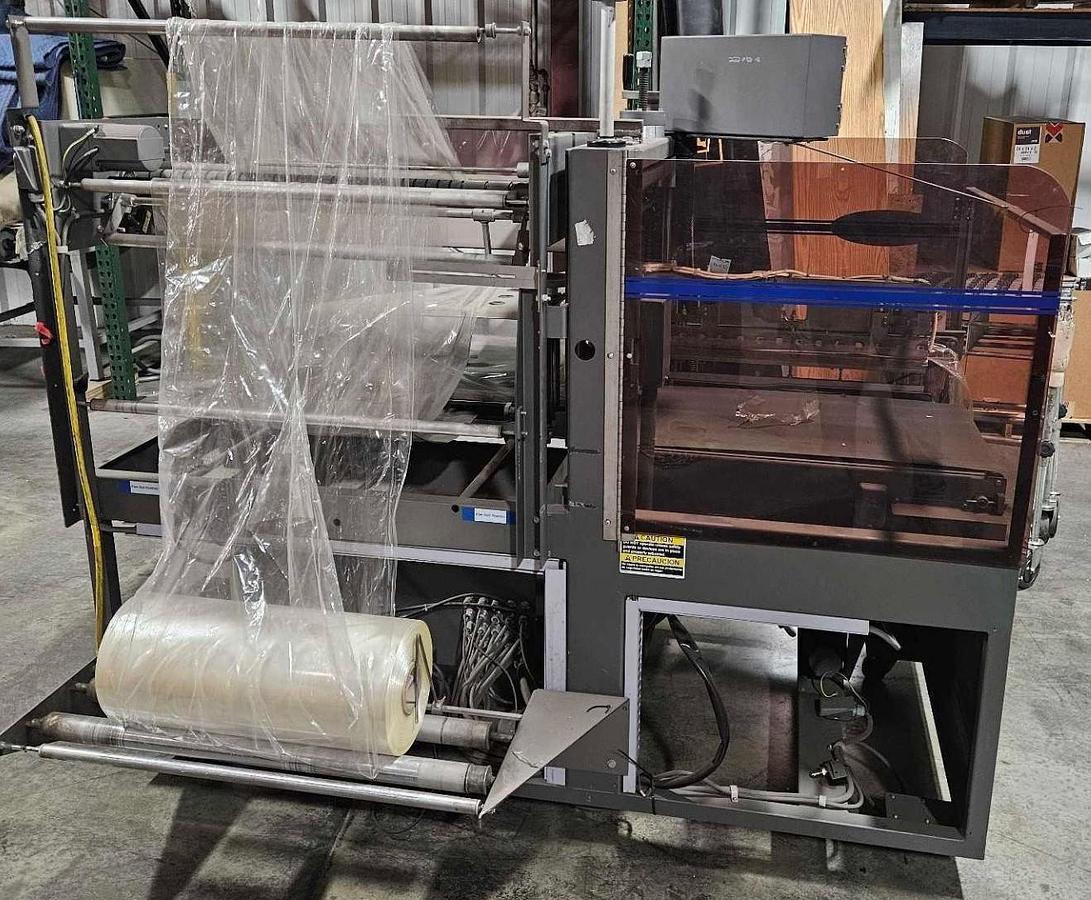

Used Arpac-Hangata Automatic L-Bar Sealer, Model L-18

1 Used Arpac-Hangata Automatic L-Bar Sealer, Model L-18. Machine was manufactured in 2006 and is designed to package up to 40ppm per minute. Product specifications: L – 4” to 18-1/2”, W – 1-1/2” to 15”, H – ¼” to 6”. Seal dimensions: 17-3/4” W x 19-1/2” L. Maximum package weight: 25 pounds. Film roll diameter: 11-1/2”. Film type: Center fold. Film centerfold maximum width: up to 24”.

Main features:

·         Welded steel frame, small footprint – grey powdered finish

·         Clear polycarbonate guarding with hinged doors and electrical interlocks

·         Guillotine style hot knife seal bar design

·         Single point adjustment seal height with automatic seal cylinder stroke limiting

·         45 to 90 fpm variable speed conveyor

·         Soft start by AC frequency control

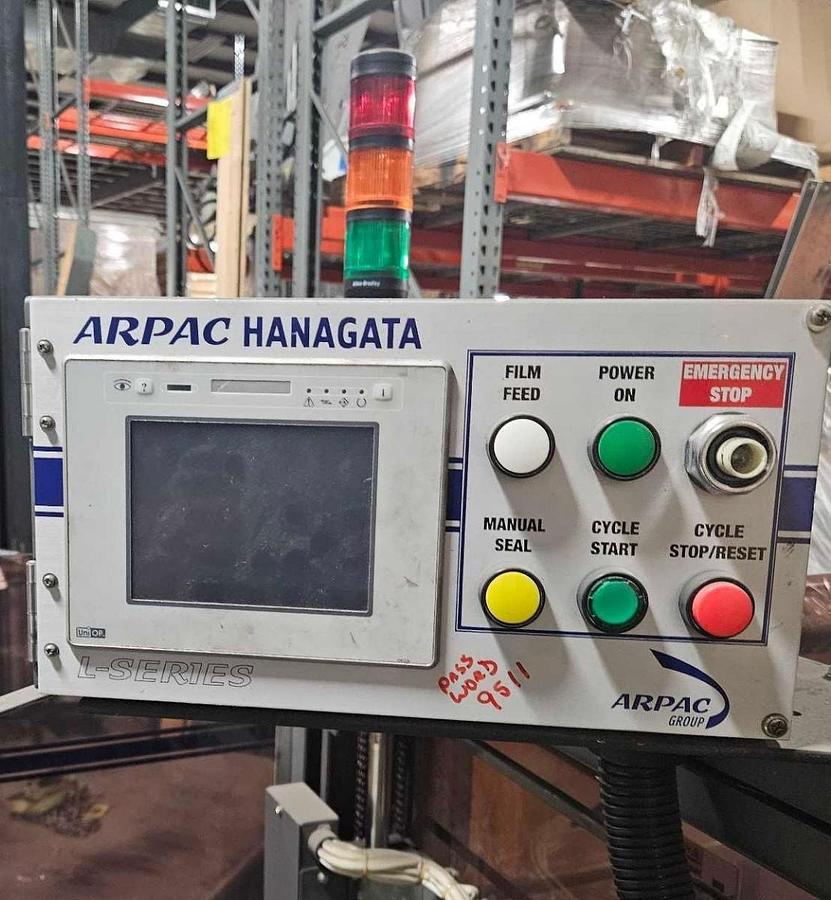

·         Integrated color touchscreen interface

·         Easy load film cradle with on demand power film speed

·         Film pinch roller positioned ahead of seal head eliminating film breaks/tears

·         Scrap film trim removal by rewind system

Requires 80 psi, 1 scfm air. Electrics: 1/60/230 volts, 10 amps.

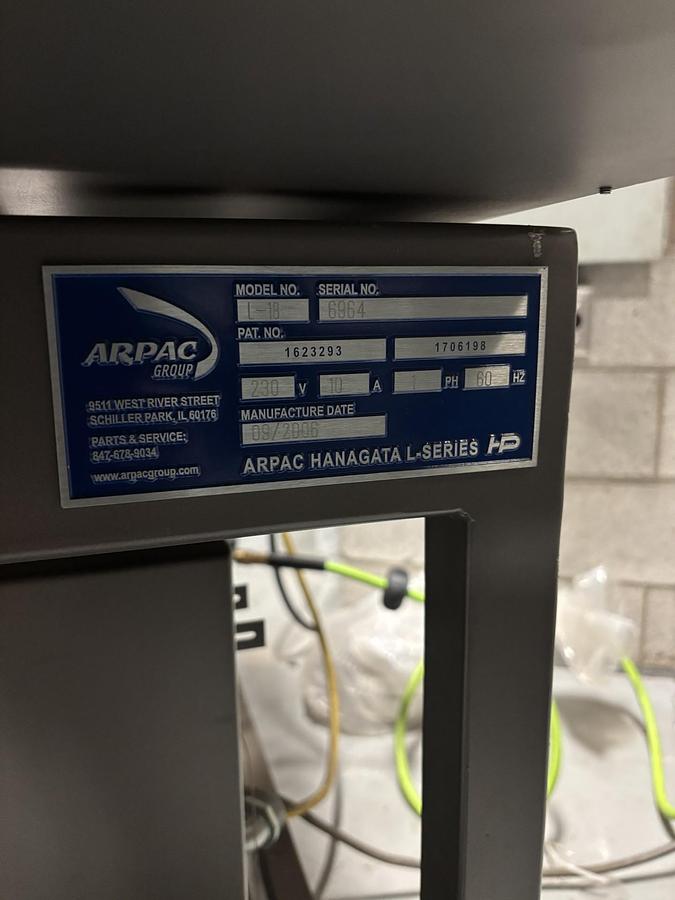

. Serial #: 6964. Machine was manufactured in 2006 and is designed to package up to 40ppm per minute. Product specifications: L – 4” to 18-1/2”, W – 1-1/2” to 15”, H – ¼” to 6”. Seal dimensions: 17-3/4” W x 19-1/2” L. Maximum package weight: 25 pounds. Film roll diameter: 11-1/2”. Film type: Center fold. Film centerfold maximum width: up to 24”.

Main features:

·         Welded steel frame, small footprint – grey powdered finish

·         Clear polycarbonate guarding with hinged doors and electrical interlocks

·         Guillotine style hot knife seal bar design

·         Single point adjustment seal height with automatic seal cylinder stroke limiting

·         45 to 90 fpm variable speed conveyor

·         Soft start by AC frequency control

·         Integrated color touchscreen interface

·         Easy load film cradle with on demand power film speed

·         Film pinch roller positioned ahead of seal head eliminating film breaks/tears

·         Scrap film trim removal by rewind system

Requires 80 psi, 1 scfm air. Electrics: 1/60/230 volts, 10 amps.
