Used Gericke Comil Particle Size Reduction Machine “Nibbler”, Model GCN 300

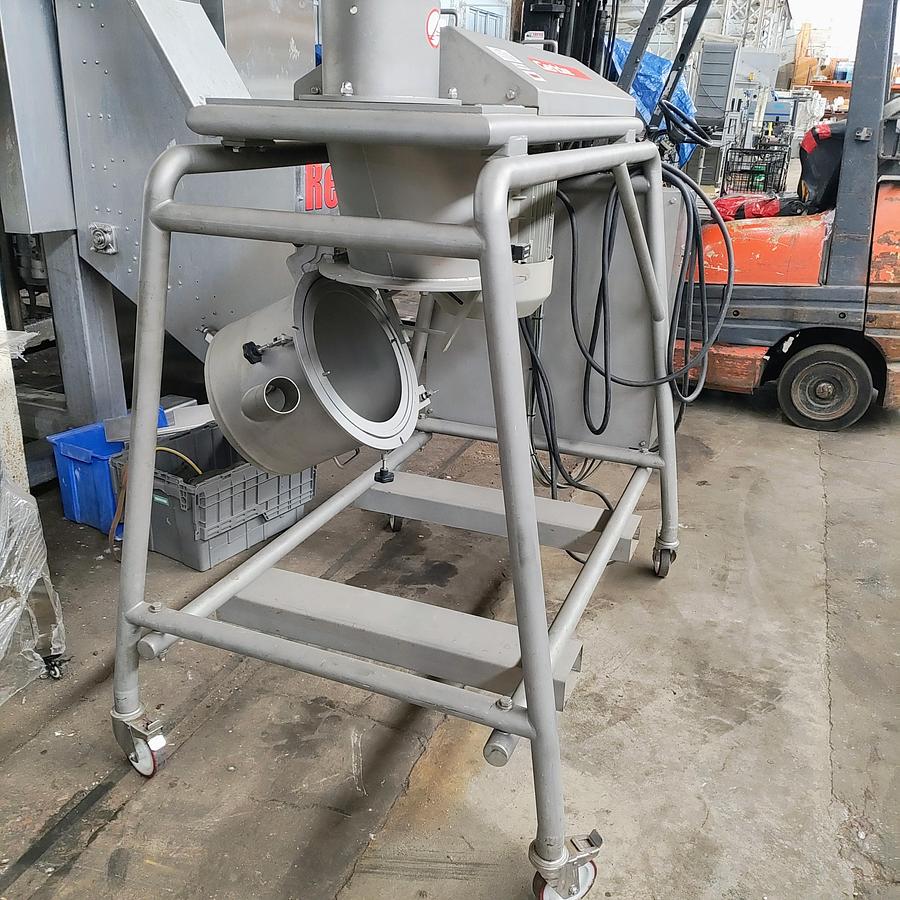

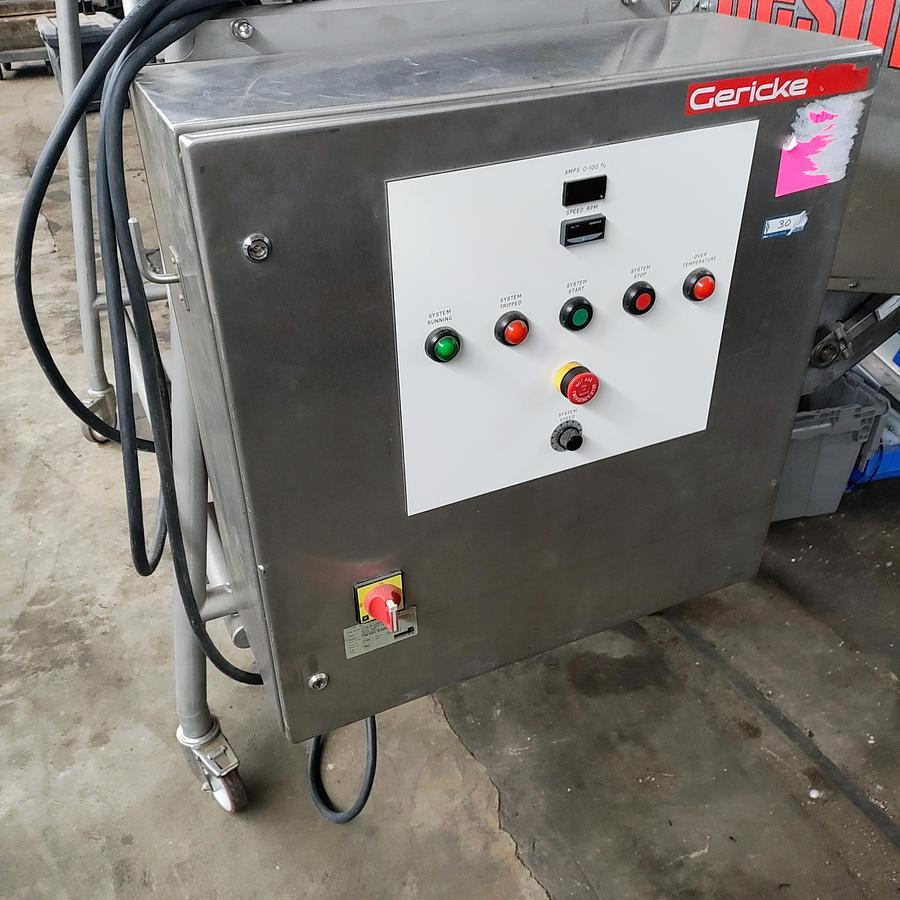

1 Used Gericke Comil Particle Size Reduction Machine “Nibbler”, Model GCN 300.  Machine was originally manufactured in 2009 and is constructed in Stainless Steel. Comes with integrated control panel with start/stop, emergency stop, variable mixing speed, rpm display, over temperature, and tripped controls, Sits on castors. Electrics: 10HP, 3/60/380-460 volts. Last used in a large pharmaceutical facility.

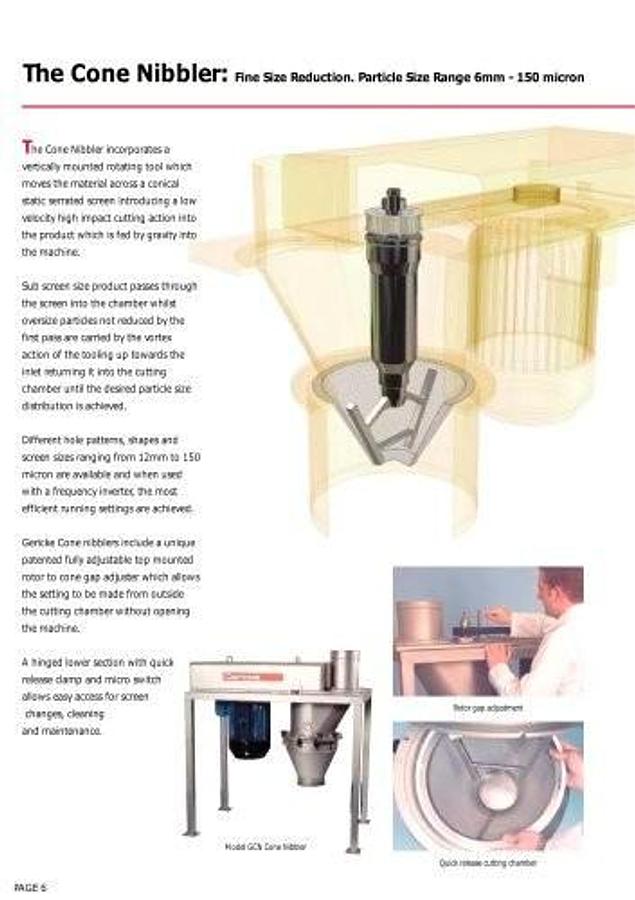

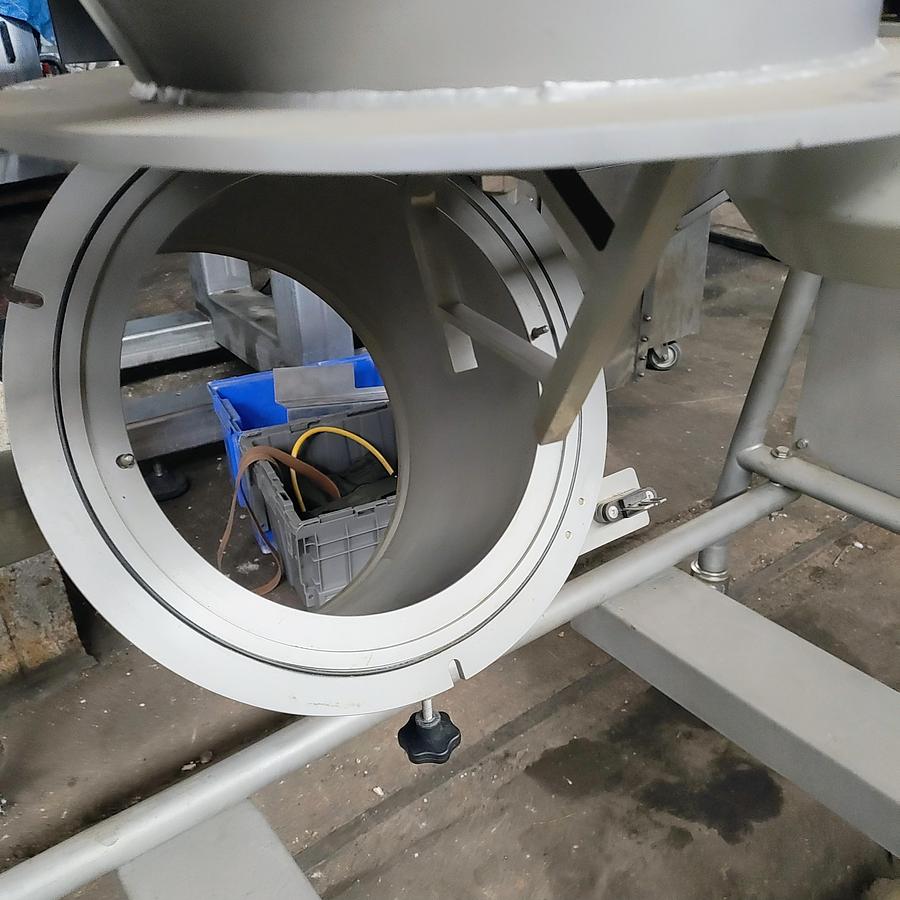

From the OEM: The Nibbler is designed for applications requiring a very fine particle size, or if increased bulk density is required. The Cone Nibbler incorporates a vertically mounted rotating tool, (open wing agitator) which moves the material across a conical static serrated screen introducing a low velocity, high impact cutting action into the product which is fed by gravity into the machine. Sub-screen size product passes through the screen into the chamber while oversize particles not reduced by the first pass are carried by the vortex action of the tooling up towards the inlet, returning them into the cutting chamber until the desired particle size distribution is achieved.
