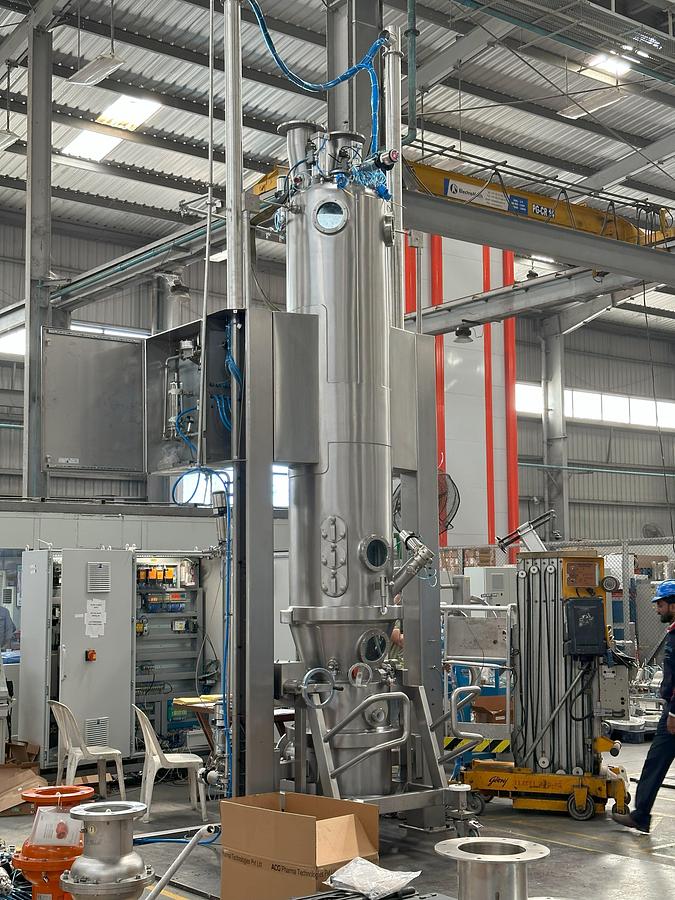

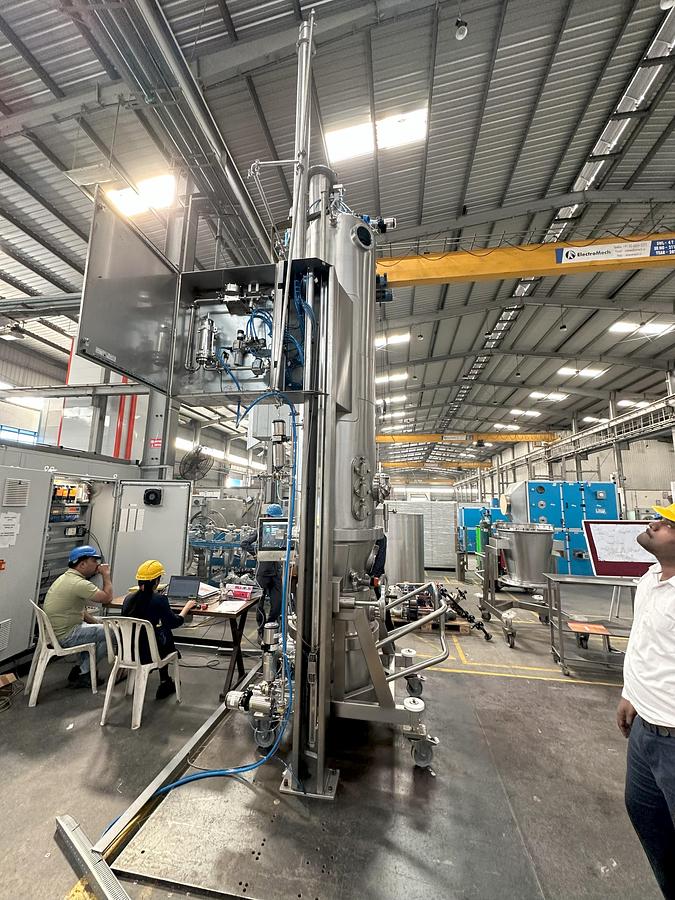

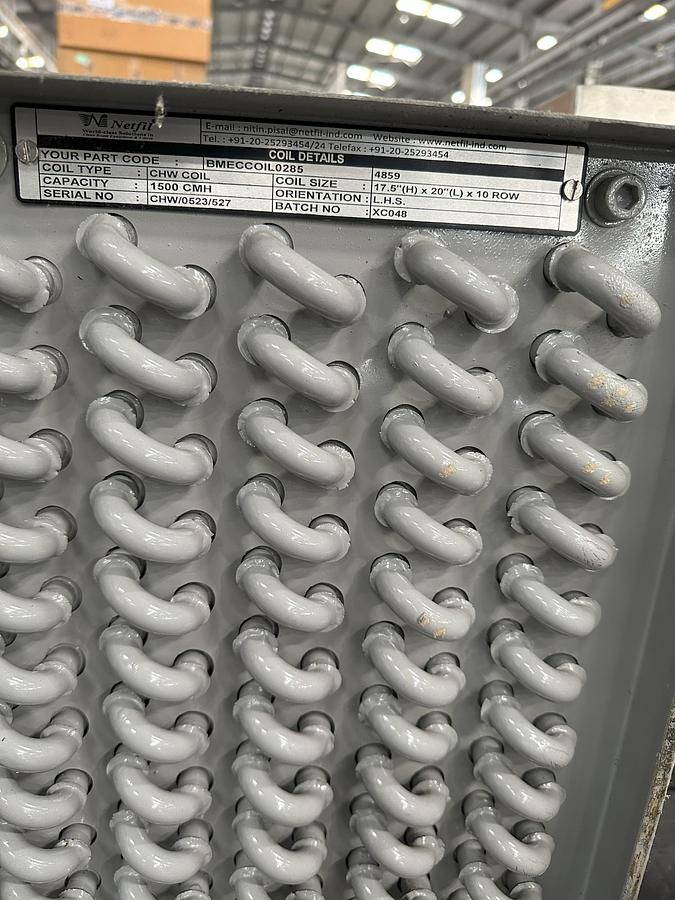

UNUSED ACG STAINLESS STEEL FLUID BED PROCESSOR, MODEL FBC 125 XꞏONE

UNUSED ACG STAINLESS STEEL FLUID BED PROCESSOR, MODEL FBC 125 XꞏONE.

Technical Specifications

Pressure shock resistance (machine tower):  12 bar

Design temperature fresh air intake:  -10°C

Inlet air temperature (Entry machine tower): 80°C

Process air flow volume: 1500 m3/h

Min. process air flow volume (25%):  375 m3/h

Static pressure exhaust air fan: 1200 daPa

Machine dimensions:

A 1   1600 mm

A 2   720 mm

B 1   4900 mm

B 2   4484 mm

B 3   14910 mm

C 1   70 mm

C 2   550 mm

Weight approx.:   1400 kg

Machine tower lower plenum:

Inlet air duct diameter:  200 mm

Temperature sensor:  PT 100

Drain connection:  Tri-Clover NW, 60,3

WIP port: Tri-Clover NW 3"

Top spray product container:

Gross volume top spray product container (if purchased in future): 210 dm3

Working volume top spray product container max: 210 dm3

Working volume top spray product container min. (20%):42 dm3

Bottom plate diameter:  496 mm

No. observation sight glasses:  2

Side port in the product container for cleaning and discharge (inner diameter):  Tri-Clover NW 2-1/2"

Spray nozzle manufacturer:  SCHLICK PT 100

Product temperature sensor: PT 100

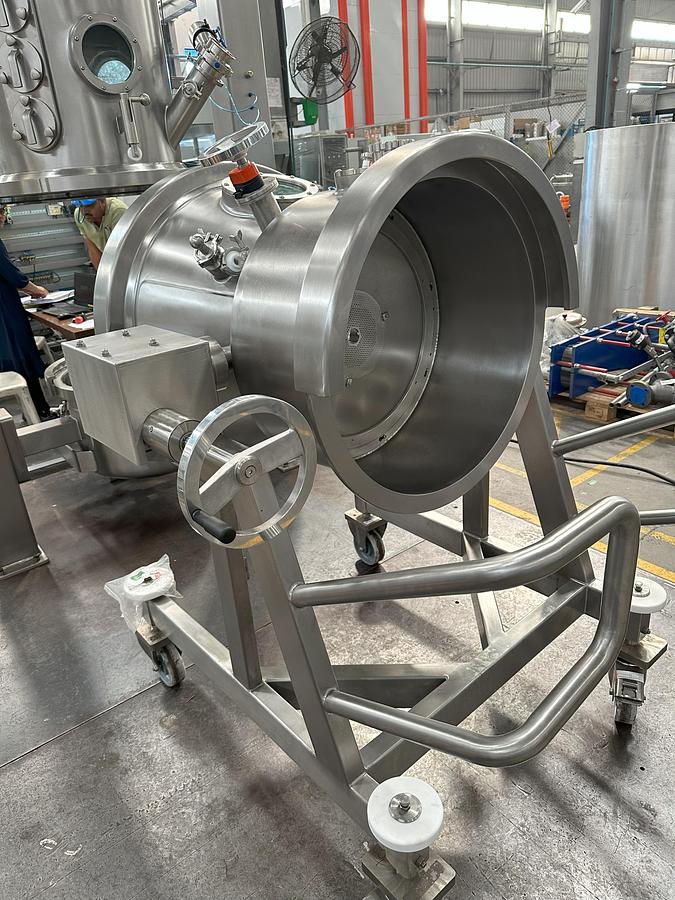

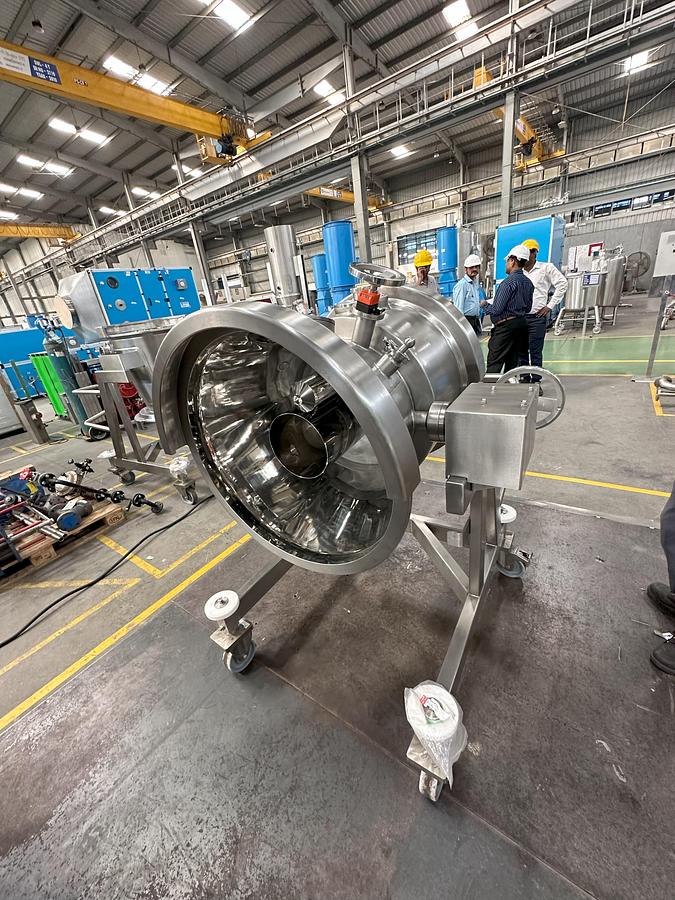

WURSTER product container:

Gross volume WURSTER product container: 130 dm3

Working volume WURSTER product container max.:  80 dm3

Working volume WURSTER product container min. (30% of working volume): 24 dm3

Number of WURSTER columns:  1

Tiltable product container design: NO

Spray nozzle manufacturer / WURSTER product container: SCHLICK

Bottom plate diameter / WURSTER product container:  496 mm

No. observation sight glasses / WURSTER product container:  1

Side port in the product container for cleaning (inner diameter) / WURSTER product container:  Tri-Clover NW 2-1/2"

Product temperature port / WURSTER product container:  Tri-Clover NW 1-1/2"

Product temperature sensor / WURSTER product container:  PT 100

Filter housing (Twin chamber):

No. filter chambers:  2

No. observation sight glasses in expansion chamber / filter housing: 4

No. top spray nozzle ports: 3

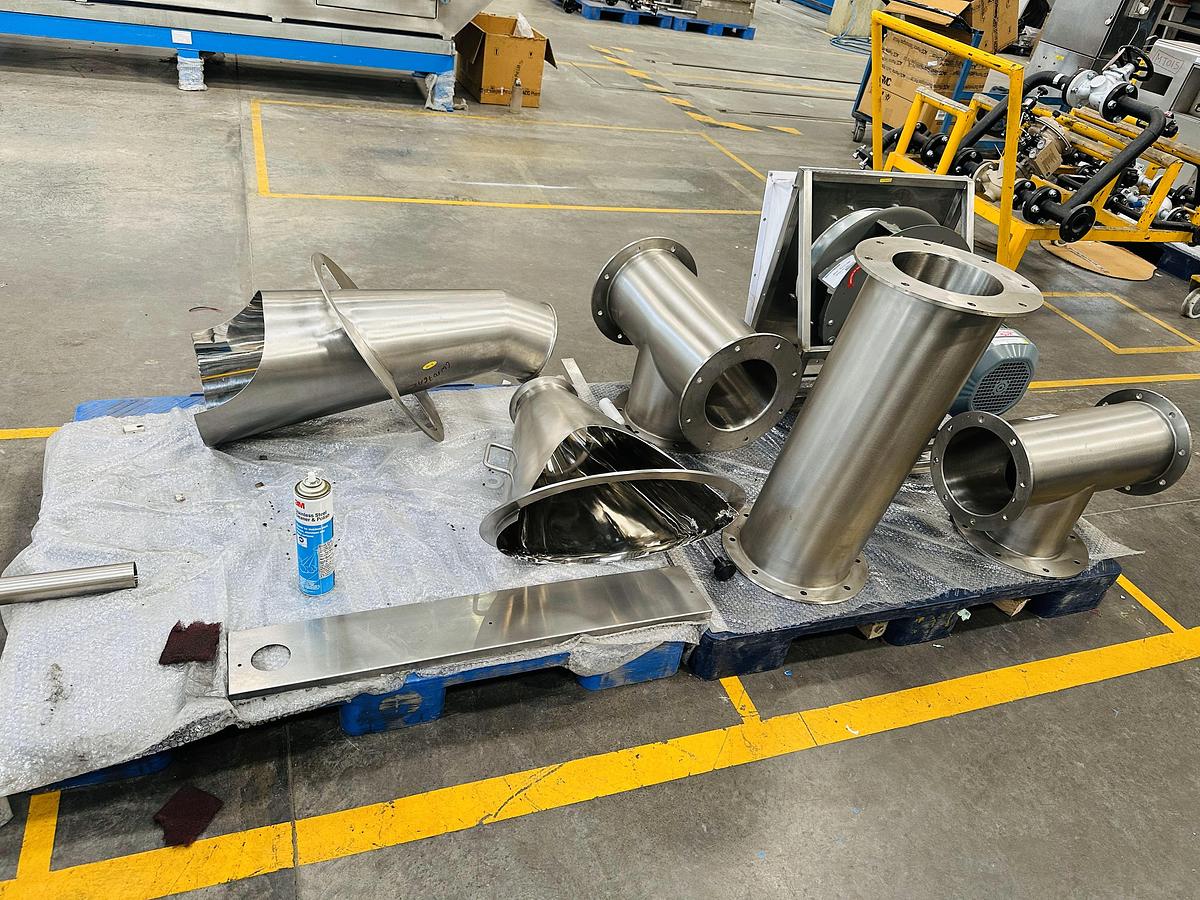

Outlet air duct diameter (2 places):  200 mm No

Filter catch device: NO

Utilities:

Required energy connections at site: 3/60/575 volts

Control voltage:  24 V DC

Motor capacity exhaust air fan:   11 KW

Machine Power Panel (auxiliary): 4 KW

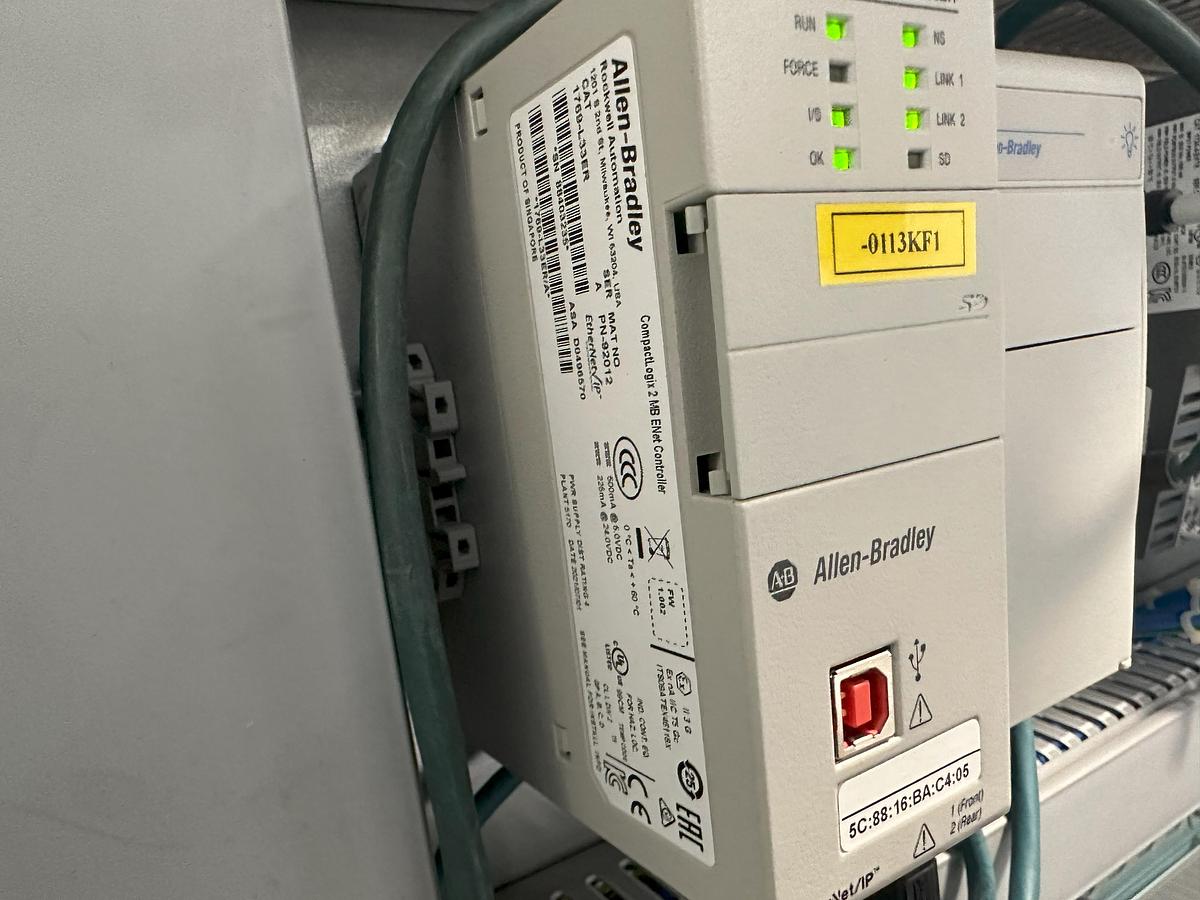

Machine Control Panel:  4 KW

Compressed air:  15 Nm3/hr

Compressed air pressure: 6 bar(g)

Atomizing air WURSTER: 111 Nm3/hr

Atomizing air (single head top spray nozzle assembly): 26 Nm3/hr

FROM THE OEM:

A premier production fluid bed system capable of handling a wide variety of process

applications simply through the incorporation of the appropriate features. Possible processes as following:

Drying of products produced by conventional wet granulation processes e.g. high shear

mixer.

Top spray granulation of powders which are suitable in their characteristics for the use in a

fluid bed process.

Coating, including API layering and film coating for the development and production of

modified release products by use of our WURSTER bottom spray technology. The

WURSTER technology is capable of handling a wide variety of substrates including fine

particles, granules, pellets or micro tablets.

The FBC XꞏONETM fluid bed processors are based on a zone concept developed by

XERTECS and can be configured for both aqueous (water based) and organic solvent based

processes. All XꞏONETM fluid bed systems are designed to enable the customer’s

compliance with current GMP standards.

Key features:

The XꞏONETM technology offers a number of advantages over conventional fluid beds:

The unique MOSTTM (patent pending) safety concept is the most advanced engineering

approach to 12 bar safety currently available. MOSTTM provides for complete containment ofa deflagration and does not require any predetermined breaking points to guarantee zero

mechanical deformations of the machine tower in case of an explosion. The unique MFCTM (Multi-Function-Column, patent pending) columns are the latest in enabling GMP compliance. The integration of utility lines, cabling and peripherals into the MFCTM columns provide a clean exterior design and set a new standard for GMP compliance.

XꞏONETM inflatable sealing system (patent pending) provides for complete 12 bar explosion pressure protection while operating with available plant compressed air pressure (3.5 to 4 bar). This advanced design provides for lower operating costs and significantly longer lifetime than competitive inflatable sealing systems.
