Used Labconco Benchtop Lyophilizer-Freeze Dryer

1 Used Labconco Table-Top Tray Dryer-Lyophilizer, Model Freezone Triad.  Manufactured in 2011, machine is designed for laboratory lyophilization procedures. Includes a vacuum pump.

OEM Specifications:

·        Stainless steel collector coil capable of removing 1.84 L of water in 24 hours and holding 2.5 L of ice before defrosting;

·        Two 1/3 hp HCFC/CFC-free refrigeration compressors cool the collector to -85° C (-121° F) and work in concert with a 1000-watt heater to cool and heat fluid medium circulating through channels in the shelf. Not for use with samples containing methanol or ethanol;

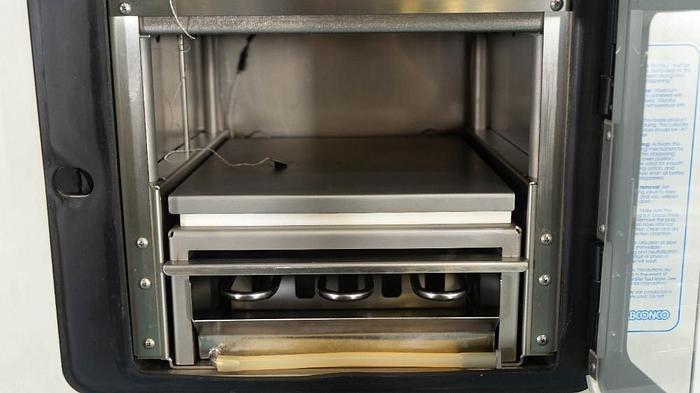

·        Processing shelf, 12.4" w x 14.5" d (31.5 x 36.8 cm). Spacing between shelf and top of chamber accommodates containers with stoppers up to 148 mm maximum height;

·        One probe for monitoring temperature of sample in chamber;

·        Temperature ramp and hold programming from -55° C to +50° C (-67° F to +122° F) and -75° C (-103° F) during pre-freezing. Controls temperature to ±1° C of set point. Memory to store 30 programs with 16 segments each including number of steps, ramp rate, shelf temperature, hold time and vacuum level;

·        Full color, 5" capacitive touchscreen with Lyo-Works™ OS:;

·        Real time display of collector temperature and vacuum level;

·        Creation and storage for up to 30 programs with up to 16 steps each. Ability to set ramp rate, shelf temperature, shelf temperature time and vacuum set point per step;

·        Manual start-up buttons for collector and shelf temperature control and vacuum pull down;

·        Alerts, diagnostic tests, user manual and defrost control;

·        Data logging stores and displays data in table or graph format, and may be exported via USB or Ethernet;

·        Settings include language (English, Spanish, French, German, or Italian), time, temperature (° C or ° F) and vacuum (mBar, Torr or Pa);

·        Alerts can be emailed to user-entered addresses via Ethernet connection;

·        Vacuum pump maintenance alert;

·        Security lock-out;

·        Pneumatic stoppering mechanism with diaphragm and plate. No compressed gas is required;

·        Stoppering control knob, vacuum release control knob and 1/8" OD user-supplied sterile/inert gas backfill port;

·        Four left side-mounted neoprene valves with molded plastic knobs and fittings that accommodate 1/2" and 3/4" flask adapters;

·        USB port and Ethernet connection;

·        Electrical receptacle for vacuum pump;

·        Hot gas defrost with stainless steel drain pan, silicone drain hose and auto shut off at +60° C (+140° F);

·        Vacuum control valve;

·        Vacuum break valve;

·        Stainless steel and powder-coated steel exterior;

·        Clear acrylic door, 1" thick, with silicon gasket and latch 3/4" OD vacuum connection. 36" long, 3/4" ID vacuum hose with two clamps;

·        Vacuum pump with a displacement of at least 98 L/min, 0.002 mBar ultimate pressure and fitting for 3/4" ID vacuum hose;

·        Freeze dry glassware if not bulk freeze drying.
